'78 Moke Bulkhead / Body Holes - What are they For?
« on: April 21, 2019, 10:00:01 PM »
Hi Guys,

I am up to running the wiring loom and battery/brake Lines for the Moke.

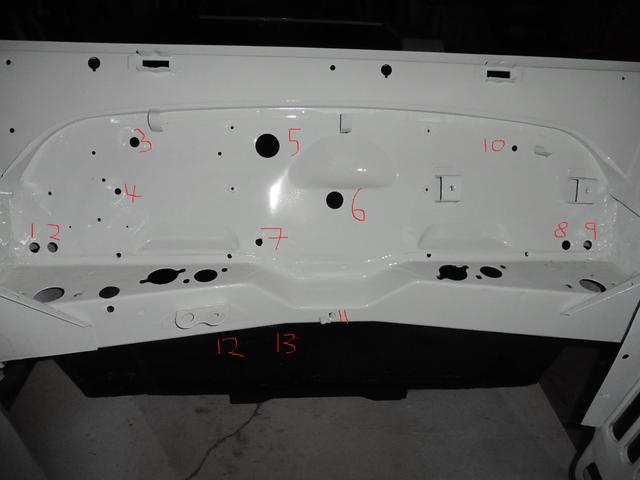

I am unsure about some of the holes in the bulkhead and what they are for. I have taken a PIC and numbered each hole, and put what i think they are for below....please feel free to correct me and chime in as to what you guys have used for each hole, as it was such a long time ago i pulled everything out, and of course i did not take enough pics of what went where.




Hole#      Purpose

1.  Battery Positive Cable
2. Rear Brake Line
3. Unsure of....was that for the wiper motor wiring?
4. Fuse Box mounting?
5. Main Wiring Loom
6. Speedo Cable
7. Choke Cable
8. Fuel Line
9. Rear Wiring Loom
10. Unsure...does that just need to be plugged?
11. Not sure of that clip...is that for the reverse lamp switch wires?
12. Not sure what that hole is for
13. Not sure of what that hole is for

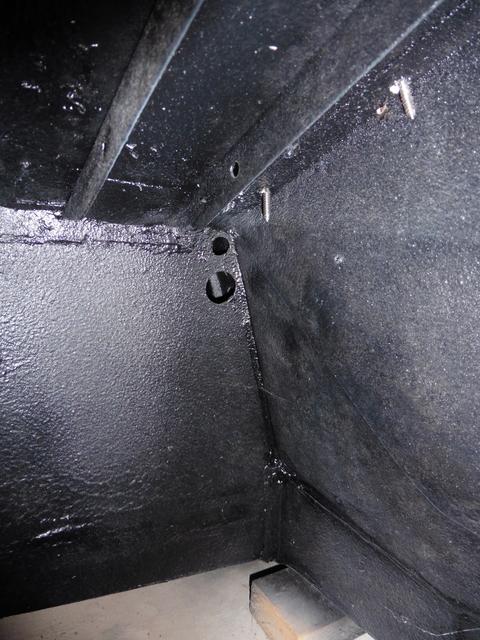

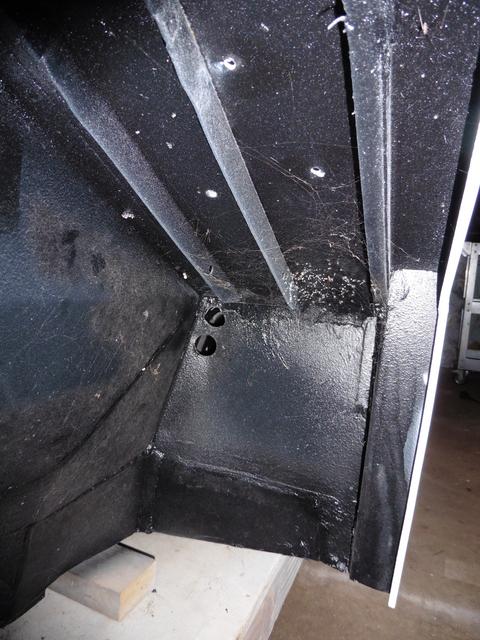

I am also unsure of the 4 holes that are in the front of the panniers facing the wheel arches...are they used for anything at all or should they just be plugged up with rubber plugs.

Passenger Side


Driver Side



As always..help is always appreciated!

Gizmo.7000

  • Standard
  • Registered Member

  • Offline
  • *

  • 76
  • Location: Mid North
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #1 on: April 28, 2019, 07:51:09 PM »
Hey Guys...

I think I am pretty right with most of them, I may have had the rear brake and starter solenoid to battery wire mixed up (1 and 2).

Looks like 3 is not used and can be plugged, same with #10.

Not sure about holes at 12/13 and the clip/hole @ #11.

If anybody can help out to advise what they are used for or if they are used at all it would be great.

Cheers,

Gizmo


Terry

  • Custodian
  • Registered Member

  • Offline
  • ***
  • Serial Moke Offender

  • 15720
  • Location: Melbourne
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #2 on: April 28, 2019, 08:10:04 PM »
Hi,

#3 is used for the wires to the wiper motor from the fuse box an from behind the dash.

#12 or #13 I think are choke cable and heater valve cable holes

#11 the clip holds the fuel supply hose/pipe away from the exhaust pipe manifold.

Yes you did have #1 & #2 mixed up.

The holes under the guards are normally not used and can be blanked off with grommets, however some people have used them to run custom wiring to front lights or pipes from brake boosters located in the sidebox.

Terry
13: "I am the scariest number."
666: "No, I am the scariest number."
2020: "Hold my beer and watch this."

Cujo. 1999 - 2016

Gizmo.7000

  • Standard
  • Registered Member

  • Offline
  • *

  • 76
  • Location: Mid North
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #3 on: April 28, 2019, 08:55:06 PM »
Thanks Terry...much appreciated as always.

If 12/13 are Choke and Heater than #7 must be an extra hole for something else...maybe I can plug that one then.

It did have a heater originally which was broken.




Terry

  • Custodian
  • Registered Member

  • Offline
  • ***
  • Serial Moke Offender

  • 15720
  • Location: Melbourne
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #4 on: April 28, 2019, 09:19:19 PM »
Hi,

on some Mokes the choke is int he dash, hole #7 and other it is a separate bracket under the dash.

Terry
13: "I am the scariest number."
666: "No, I am the scariest number."
2020: "Hold my beer and watch this."

Cujo. 1999 - 2016

moke

  • Standard
  • Registered Member

  • Offline
  • *

  • 1108
  • Location: Jimboomba, QLD
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #5 on: April 29, 2019, 05:50:34 PM »
On my 1980 Moke.
12 is for the accelerator cable and 13 for the heater cable.
7 is Choke.
The clip 11 holds the speedo cable away from the manifold.
Whether that is factory spec or not, I have no idea.
Dean
It's hard to leave when you can't find the door - Joe Walsh

Gizmo.7000

  • Standard
  • Registered Member

  • Offline
  • *

  • 76
  • Location: Mid North
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #6 on: April 29, 2019, 06:50:07 PM »
Thanks Guys...I appreciate the help and replies.

Looking forward to bolting these new bits and pieces on the old girl and getting her going soon.


Sharks

  • Standard
  • Registered Member

  • Offline
  • *

  • 93
  • Location: Bendigo
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #7 on: October 24, 2020, 01:11:23 PM »
We're currently trying to piece our wiring together and have been referencing this thread a fair bit to work out what goes where, however we're now unsure of where the reverse switch's wires go. I think Dad used to have them running through hole #13(?), but that seems awfully close to the exhaust.

Could anybody please advise?  :o

Halfpint

  • Forum Support Group
  • Registered Member

  • Offline
  • ***
  • MOKE Pilot

  • 4248
  • Personal Text
    It's not where you go, it's how you get there !
  • Location: N/E Vic. Australia
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #8 on: October 24, 2020, 11:15:03 PM »
We're currently trying to piece our wiring together and have been referencing this thread a fair bit to work out what goes where, however we're now unsure of where the reverse switch's wires go. I think Dad used to have them running through hole #13(?), but that seems awfully close to the exhaust.

Could anybody please advise?  :o
Hey there Sharks,
One of my Mokes I ran the wire through that hole, it can run close to the exhaust if you let it. Run it behind/ under the steering rack and if there is enough length, cable tie it to the gear lever support mount.
On another Moke, I ran it under the carpet, But it can rub through after a while in the dust and sand that tends to accumulate under there, so again, through the bulk head somewhere is best I think.
HP
The happiest of people don't always have the best of everything, they just make the best of everything they have.

winabbey

  • Standard
  • Registered Member

  • Offline
  • *

  • 267
  • Location: Melbourne
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #9 on: October 25, 2020, 03:19:06 PM »
Be aware that some holes in body panels are for tooling alignment during panel pressing and panel assembly construction, and not actually used on a finished vehicle. I'm more familiar with those on Mini panels and not so much on Moke.

Terry

  • Custodian
  • Registered Member

  • Offline
  • ***
  • Serial Moke Offender

  • 15720
  • Location: Melbourne
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #10 on: October 26, 2020, 08:31:55 AM »
Hi,

the reverse wires don't need to go through the firewall at all.

A solid green wire from the fuse box down to the switch on the selector and then a green with trace from the switch joins up with the rest of the wires heading down the back to go to the rear lights.

Terry
13: "I am the scariest number."
666: "No, I am the scariest number."
2020: "Hold my beer and watch this."

Cujo. 1999 - 2016

Sharks

  • Standard
  • Registered Member

  • Offline
  • *

  • 93
  • Location: Bendigo
Re: '78 Moke Bulkhead / Body Holes - What are they For?
« Reply #11 on: October 26, 2020, 10:09:35 AM »
Thanks everyone for helping out. Terry's method makes sense, but with the way we've done our loom I think we'll go with Halpint's, through the firewall. No carpet in our Moke, so we can't hide it there!!
