Rear Wiring Harness between taillights...how does it route?
« on: April 21, 2019, 10:08:01 PM »
Hi Guys,

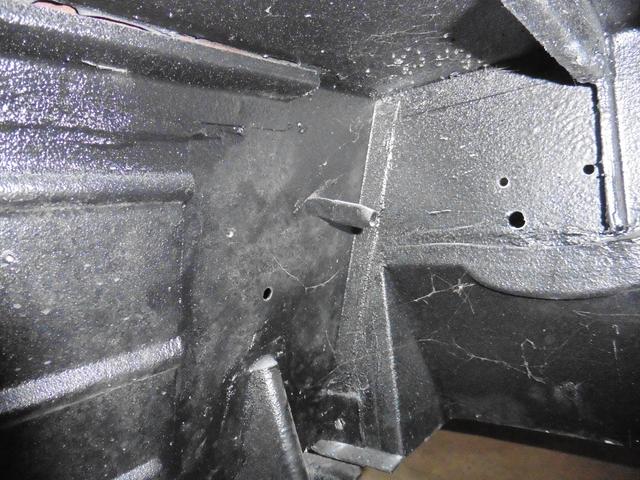

Looking at the rear wiring harness routing...from where it finishes running on the small lip underneath the rear and goes down to the flexible metal retainer, where does it go from here to get to the right hand side?

Does it run along the main rear crossmember under the floor?

I take it the small hole in the body is for the number plate lamp wire on the Right hand side, and the left can be plugged?


Halfpint

  • Forum Support Group
  • Registered Member

  • Offline
  • ***
  • MOKE Pilot

  • 4041
  • Personal Text
    It's not where you go, it's how you get there !
  • Location: N/E Vic. Australia
Re: Rear Wiring Harness between taillights...how does it route?
« Reply #1 on: April 22, 2019, 08:11:56 AM »
Hi,
The wiring harness is fed through the chanell that runs across the rear of the moke starting from the drivers side tail light. If you trace back from the pasenger side tail light, through the fold over tab and and go straight down, the wires should exit from this chanel.

Its the chanel at the very bottom of this pic when my MOKE was upside down.



HP
The happiest of people don't always have the best of everything, they just make the best of everything they have.

Gizmo.7000

  • Standard
  • Registered Member

  • Offline
  • *

  • 76
  • Location: Mid North
Re: Rear Wiring Harness between taillights...how does it route?
« Reply #2 on: April 28, 2019, 07:37:54 PM »
Thanks HP..Much appreciated.

Gizmo
